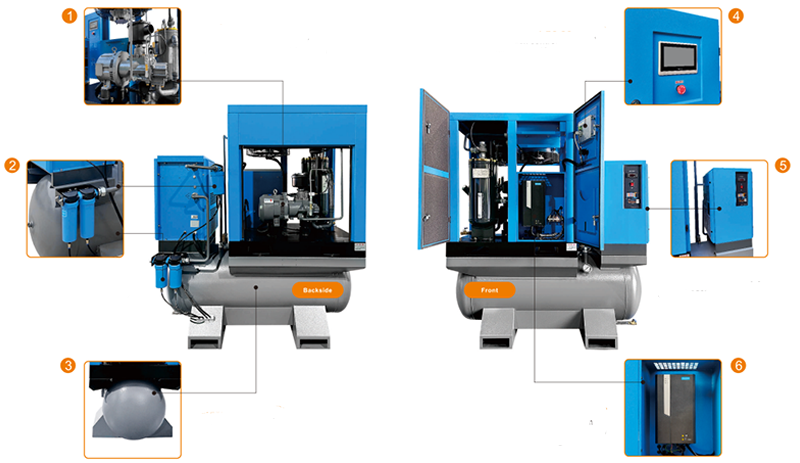

1.High Quality Air-End
Keep compressor stable running Guaranteed no overheat problem on continuous 100% load.
2. Line Air Filter
3 or 4pcs line air filter, remove most of the liquid oil and water as well as large solid particles.
3. Larger Volume Air Tank
Storage, buffer, cooling and energy saving.
4. PLC Controller
Colorful touch controller, easy for operation with record, remain, alarm protect function.
5.Refrigerated Air Dryer
Lower pressure dew point, remove 98% water from air.
6.Reliable Inverter
Air supply air demand, no electricity wastage, no unload wastage.

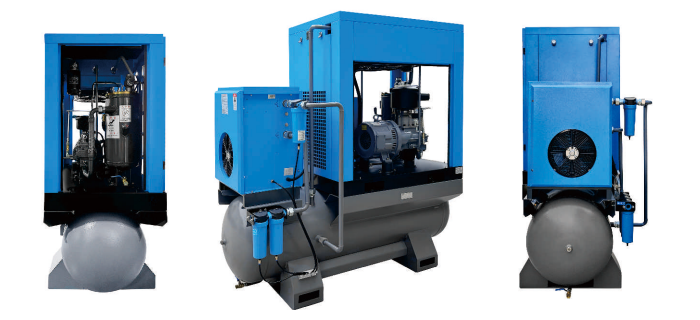

i series 4in1 Permanent Magnet VSD Screw Air Compressor
| Model | Max Working Pressure | F.A.D | Motor Power | Air Tank Capacity | Connection | Net Weight | Dimension (L*W*H) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³/min | CFM | hp | kw | kgs | mm | |||
| AS7.5-8i | 8 | 116 | 1.10 | 38 | 10 | 7.5 | 250 | G3/4" | 350 | 1430*800*1580 |
| AS7.5-10i | 10 | 145 | 0.90 | 31 | ||||||
| AS11-8i | 8 | 116 | 1.60 | 56 | 15 | 11 | 400 | G3/4" | 510 | 1850*950*1870 |
| AS11-10i | 10 | 145 | 1.40 | 49 | ||||||
| AS15-8i | 8 | 116 | 2.60 | 91 | 20 | 15 | 400 | G3/4" | 510 | 1850*950*1870 |
| AS11-10i | 10 | 145 | 2.00 | 70 | ||||||
| AS22-8i | 8 | 116 | 3.60 | 127 | 30 | 22 | 400 | G1" | 555 | 1850*950*1870 |
| AS22-10i | 10 | 145 | 3.00 | 106 | ||||||
(15 Bar-Special For Laser Cutting Machine)
| Model | Max Working Pressure | F.A.D | Motor Power | Air Tank Capacity | Connection | Net Weight | Dimension (L*W*H) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³/min | CFM | hp | kw | kgs | mm | |||
| AS11-15i | 15 | 217 | 1.0 | 35 | 15 | 11 | 400 | G3/4" | 510 | 1850*950*1870 |
| AS15-15i | 15 | 217 | 1.6 | 56 | 20 | 15 | 400 | G3/4" | 510 | 1850*950*1870 |
| AS22-15i | 15 | 217 | 2.3 | 81 | 30 | 22 | 400 | G1" | 555 | 1850*950*1870 |
