Working conditions:
Max.operating temperature < 100C(P.M.H). < 60° C (C)
Min.operating temperature: < 1.5C
Min.operating pressure: < 1.6 Mpa
Standard configuration:
Air filter case +Filter element +Auto-drain

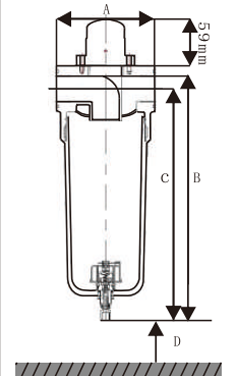

| Model | Conn.size | Flow rate | Dimensions | Element Model | ||||
|---|---|---|---|---|---|---|---|---|
| - | inch(RP | m³/min | cfm | A | B | C | D | - |
| F0020 | 1/2" | 0.57 | 20 | 95 | 207 | 174 | 95 | 0020E |
| F0021 | 3/4" | 0.57 | 20 | 95 | 207 | 174 | 95 | 0020E |
| F0045 | 1/2" | 1.3 | 46 | 95 | 207 | 174 | 110 | 0045E |
| F0046 | 3/4" | 1.3 | 46 | 95 | 207 | 174 | 110 | 0045E |
| F0070 | 3/4" | 2 | 70 | 95 | 267 | 235 | 145 | 0070E |
| F0100 | 3/4" | 2.8 | 99 | 95 | 267 | 235 | 175 | 0100E |
| F0125 | 1" | 3.5 | 124 | 125 | 301 | 261 | 185 | 0125E |
| F0126 | 1-1/2" | 3.5 | 124 | 125 | 301 | 261 | 185 | 0125E |
| F0180 | 1" | 5.1 | 180 | 125 | 301 | 261 | 185 | 0180E |
| F0181 | 1-1/2" | 5.1 | 180 | 125 | 301 | 261 | 185 | 0180E |
| F0265 | 1-1/2" | 7.5 | 265 | 125 | 385 | 345 | 230 | 0265E |
| F0370 | 1-1/2" | 10.5 | 370 | 125 | 385 | 345 | 270 | 0370E |
| F0515 | 2" | 14.6 | 515 | 170 | 504 | 455 | 390 | 0515E |
| F0745 | 2" | 21.1 | 745 | 170 | 684 | 634 | 570 | 0745E |
| F0900 | 2-1/2" | 25.5 | 900 | 200 | 820 | 752 | 570 | 0900E |
| F0901 | 3" | 25.5 | 900 | 200 | 820 | 752 | 570 | 0900E |
| F1060 | 2-1/2" | 30 | 1059 | 200 | 820 | 752 | 630 | 1060E |
| F1061 | 3" | 30 | 1059 | 200 | 820 | 752 | 630 | 1060E |
| F1280 | 3" | 36.3 | 1281 | 200 | 820 | 752 | 700 | 1280E |
| F1281 | 3" | 36.3 | 1281 | 200 | 981 | 915 | 700 | 1280E |
| F1650 | 3" | 46.7 | 1649 | 200 | 981 | 915 | 700 | 1650E |
| FL0745 | DN65 | 21.1 | 745 | 330 | 684 | 634 | 500 | 0745E |
| FL0900 | DN80 | 25.5 | 900 | 364 | 820 | 752 | 500 | 0900E |
| FL1060 | DN80 | 30 | 1059 | 364 | 820 | 752 | 500 | 1060E |
| FL1280 | DN80 | 36.3 | 1281 | 364 | 820 | 752 | 500 | 1280E |
| FL1650 | DN100 | 46.8 | 1652 | 364 | 981 | 915 | 500 | 1650E |
| Working pressure | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Correction factors | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.13 | 1.25 | 1.38 | 1.5 | 1.63 | 1.75 | 1.88 | 2 | 2.13 |
