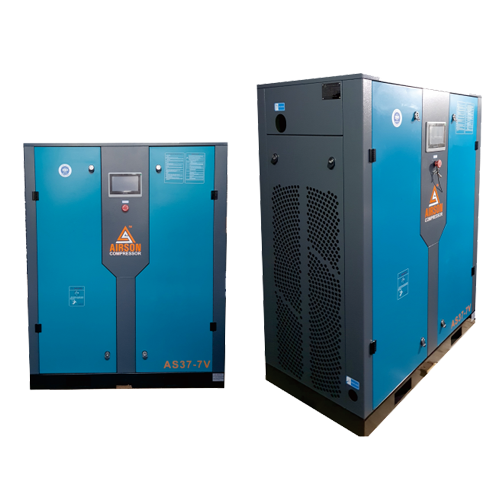

V Series Oil Cooled Permanent Magnet VSD Screw Air Compressor(Direct Drive)
| Model | Max Working Pressure | F.A.D | Motor Power | Connection | Net Weight | Dimension (L*W*H) | |||
|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³/min | CFM | hp | kw | kgs | mm | ||
| AS15-7V | 7 | 102 | 2,5 | 88 | 20 | 15 | G1" | 280 | 1050*600*1125 |
| AS15-8V | 8 | 116 | 2.6 | 91 | |||||
| AS15-10V | 10 | 145 | 2.0 | 70 | |||||
| AS22-7V | 7 | 102 | 3.8 | 134 | 30 | 22 | G1" | 295 | 1050*600*1125 |
| AS22-8V | 8 | 116 | 3.6 | 127 | |||||
| AS22-10V | 10 | 145 | 3.0 | 106 | |||||
| AS37-7V | 7 | 102 | 6.7 | 236 | 50 | 37 | G1-1/2" | 425 | 1200*650*1500 |
| AS37-8V | 8 | 116 | 6.5 | 229 | |||||
| AS22-10V | 10 | 145 | 5.4 | 190 | |||||
| AS55-7V | 7 | 102 | 10.2 | 360 | 75 | 55 | G2" | 860 | 1580*1160*1600 |
| AS55-8V | 8 | 116 | 10.0 | 353 | |||||
| AS55-10V | 10 | 145 | 8.0 | 282 | |||||
| AS75-7V | 7 | 102 | 13.2 | 466 | 100 | 75 | G2" | 930 | 1580*1160*1600 |
| AS75-8V | 8 | 116 | 12.5 | 441 | |||||
| AS75-10V | 10 | 145 | 10.0 | 353 | |||||
