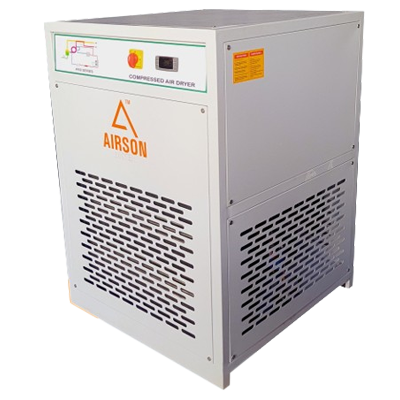

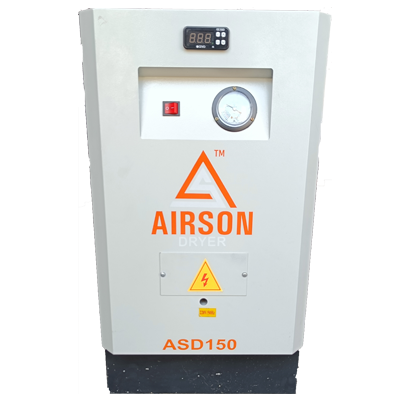

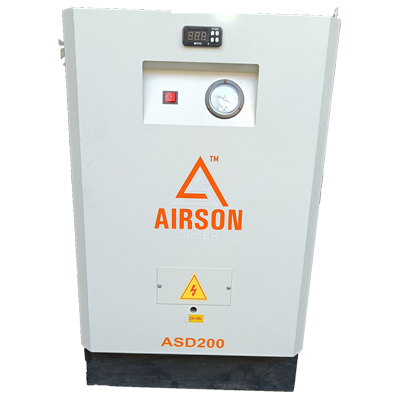

Air Dryer
Dry compressed air
-
High efficiency plate-fin type heat exchanger, the air Inlet & air outlet temperature difference lower than 5°C.
-
Water remove rate reach to 99%.
-
Relative humidity lower to 20% of outlet compressed air.
Energy saving
-
Energy consumption reduce 50% compares with the conventional barrel type refrigerated air dryer.
-
Optimized refrigerating system.
-
Environment protect refrigerant R134A & R22A.
Reliable
-
Durable imported EMERSON & Tecumseh refrigerant compressor.
-
Digital PLC displays air dryer dew point, fault code and operation situation.
-
Optimize piping design, only 4 manual welding point,reduce the risk of leakage.
-
Each air dryer should pass 3 leakage detecting: compressed air, helium and refrigerant test before delivering.
Easy operate
-
One button to start and stop.
-
All pipes and wires are connected before delivering, plug and use.
Technical Parameters
| Model |
Air Capacity |
Refrigerant |
Compressor Power |
Power Supply |
Dimension (L*W*H) |
Net Weight |
Air Connection |
| m³ /min |
W |
V/Ph/Hz |
mm |
kgs |
Inch |
| ASD 10 |
1.0 |
R134a |
220 |
230/1/50 |
430x354x463 |
30 |
G3/4" |
| ASD 13 |
1.3 |
R134a |
360 |
230/1/50 |
548x400x615 |
36 |
G3/4" |
| ASD 21 |
2.1 |
R134a |
370 |
230/1/50 |
548x400x615 |
38 |
G3/4" |
| ASD 40 |
4.0 |
R410A |
700 |
230/1/50 |
600x520x750 |
56 |
G1" |
| ASD 66 |
6.6 |
R410A |
1050 |
230/1/50 |
600x520x750 |
58 |
G11/2" |
| ASD 85 |
8.5 |
R410A |
1100 |
230/1/50 |
650x650x875 |
75 |
G11/2" |
| ASD 105 |
10.5 |
R410A |
1150 |
230/1/50 |
650x650x875 |
79 |
G2" |
| ASD 140 |
14.0 |
R410A |
1400 |
230/1/50 |
752x745x960 |
102 |
G2" |
| ASD 175 |
17.5 |
R410A |
1650 |
230/1/50 |
752x800x1020 |
119 |
G2" |
| ASD 220 |
22.0 |
R410A |
2650 |
230/1/50 |
927x795x1126 |
168 |
G2 1/2" |
| ASD 260 |
26.0 |
R410A |
2900 |
230/1/50 |
927x795x1126 |
174 |
G2 1/2" |
AIRSON Dryer Correction Factor
| Inlet pressure correction factor |
| bar |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
| k1 |
0.9 |
0.97 |
1 |
1.03 |
1.06 |
1.08 |
1.1 |
1.12 |
1.13 |
| Inlet temperature correction factor |
| °C |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
| k2 |
1 |
1 |
1 |
0.82 |
0.69 |
0.58 |
0.45 |
| correction casivulatio |
| capacity |
= |
actual capacity m3/min |
| m3/min |
K1)x(K2)x(K3) |
| ambient temperature correction factor |
| °C |
25 |
30 |
35 |
40 |
45 |
| k3 |
1 |
1 |
1 |
0.82 |
0.69 |
